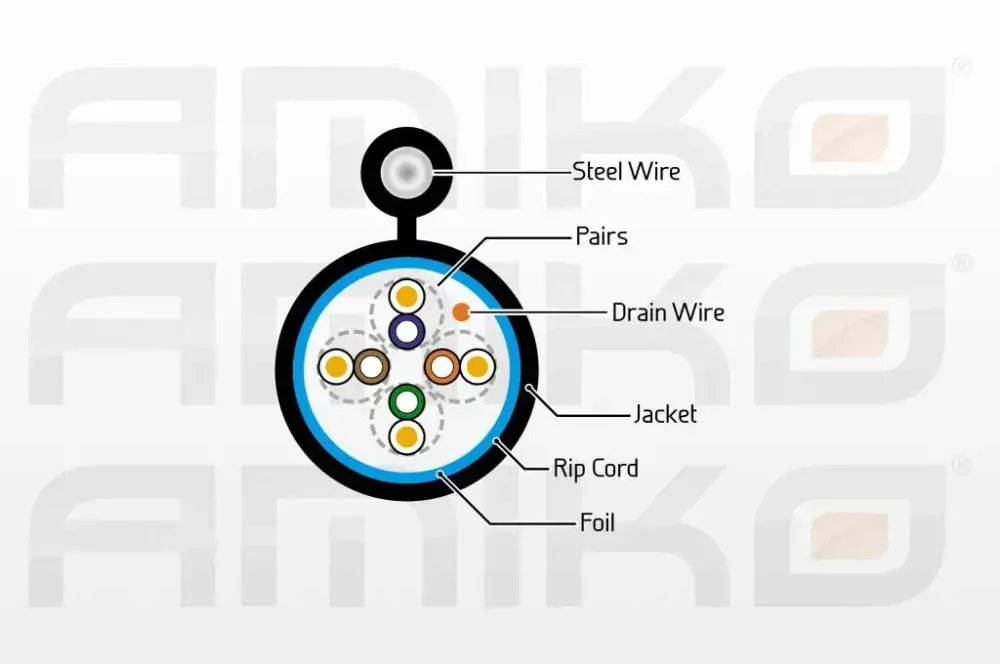

FTP Kábel samonosný CAT5E.FTP.BC.MESS.305 (2130)

Conductor:

4 Pairs: 24 AWG
Dia. of Conductor: 0.50±0.01mm
Material: Solid Bare Copper

Insulation:

Color Cord: White/Blue & Blue
White/Orange & Orange
White/Green & Green
White/Brown & Brown

Diameter: 0.98±0.05mm
Material: HDPE - Polyethylene
Nom. Thickness: 0.24mm

Shielding:

Drain Wire: 24 AWG Solid Tinned Copper
Vertical Wrap: Al-Mylar Tape 0.055×18mm
Coverage(%): 100%Sheath:

Rip Cord: 200D×3
Color: Black
Material: LDPE
Nom. Thickness: 0.72±0.05mm
O.D.: 6.50±0.3mm

Messenger:

Diameter: 0.30mm * 7
Material: Stranded Steel Wire
O.D.: 2.80±0.3mm
Color: Black

Packing:

Case: Wooden Spool 360x360x210 mm
