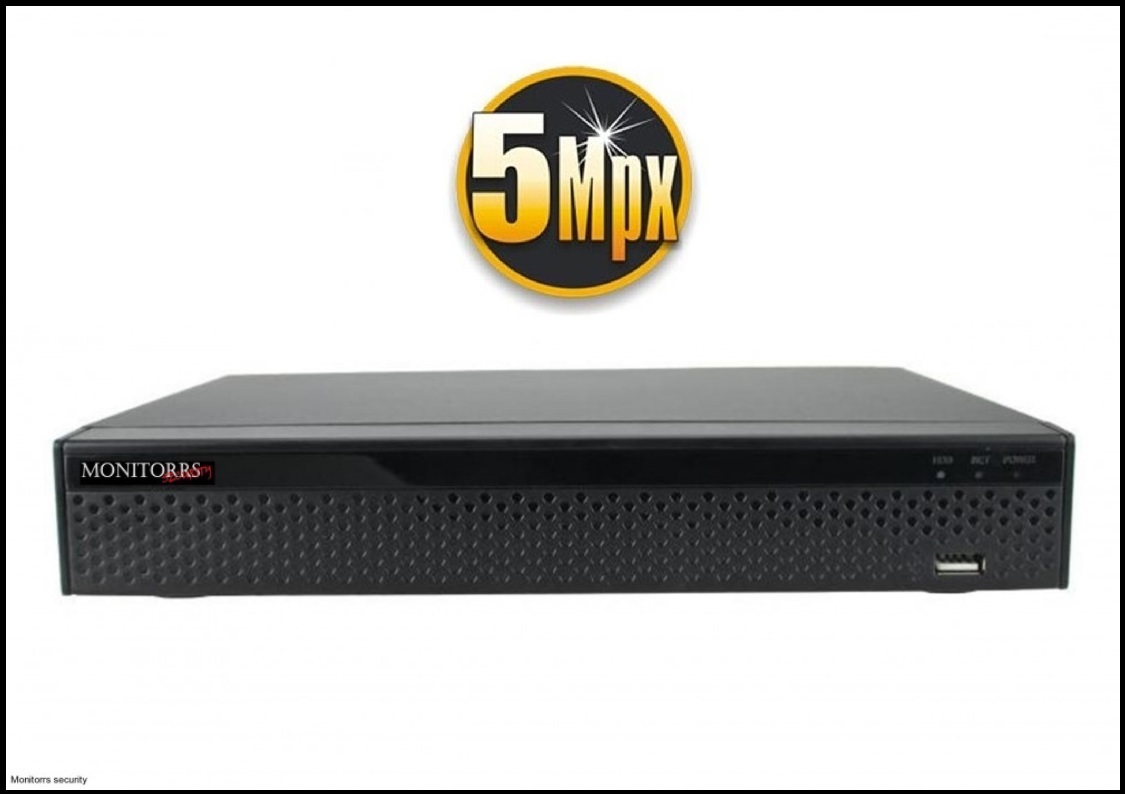

Monitorrs Security 8 kanálové XVR záznamové zariadenie 5Mpx (6276)

Monitorrs Security

8 kanálové 5v1(AHD/CVI/TVI/IP/Analog) záznamové zariadenie s možnosťou vzdialeného prístupu cez mobil alebo PC s Funkciou P2P   Možnosť kombinovať s I... celý popis
Dostupnosť
Skladom
159,00 €
132,50 €
bez DPH
ks
Číslo produktu:6276
Výrobca:Monitorrs Security
Kompletné špecifikácie

8 kanálové 5v1(AHD/CVI/TVI/IP/Analog) záznamové zariadenie s možnosťou vzdialeného prístupu cez mobil alebo PC s Funkciou P2P



Možnosť kombinovať s IP kamerami v pomere:

Analog+Network:2 x Analog + 14 x IP (Max 8MP),

                         4 x Analog + 12 x IP (Max 8MP),

                         6 x Analog + 10 x IP (Max 8MP)



Video výstup : 1xHDMI, 1 VGA,

Audio vstup 1 x cinch (RCA)

Audio výstup: 1 x cinch(RCA)

Nahrávanie:

Video kompresia H264.H.265



Internet:1 x vstup RJ45 10M/100M/1000M

Internetové funkcie : HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,DST

Harddisk 1 x SATA max. 8 TB

Ďalšie parametre:

2 x USB konektor 2.0

Napájanie 12V 2A

Rozmery : 260x215x43(mm)

System
Main ProcessorHI3531D
Operating SystemEmbedded LINUX
Video
Input

Analog: 8*(TVI/AHD: 8MP; TVI/AHD: 5MP;  AHD/TVI/CVI: 4MP;  AHD/TVI: 3MP;

AHD/TVI/CVI: 1080P/720P;  Analog: 960H)
Analog+Network:2 x Analog + 14 x network(Max 8MP),

                         4 x Analog + 12 x network(Max 8MP),

                         6 x Analog + 10 x network(Max 8MP)
Network:          32 x network(Max 8MP)(Total incoming bandwidth ≤160M)

Input8CH BNC
Signal TypeAnalog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output1 HD,1 VGA
Audio
Input4Channel, RCA
Two-way AudioNO
Output1 Channel, RCA
Alarm
Sensor InputNO
OutputNO
Motion Detection8 Channel(max 32 Channel in pure network mode)
Trigger EventsRecording,  Email, Screen tips, Buzzer, Push notifications(motion detection)
Email AlarmSend Image to The Designated E-mail
PTZ
InterfaceRS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGAResolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz
HD OutputResolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz,  1280 × 1024/60Hz
Display Split36 Channel/25 Channel/16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking3 Rectangular Zones (Each camera)
OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video CompressionH.265/H.265+/H.264/H.264+
Audio CompressionG711u
Resolution

8MP(3840×2160), 5MP(2592×1944),4MP(2560×1440),3MP(2048×1536),

1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)

Video Qualityworst/worse/ordinary/well/best
Record Rate

Analog:PAL:8MP(3840*2160 8*8fps), 5MP(2592×1944 8*12fps), 4MP(2560×1440 8*15fps),

3MP(2048×1536 8*18fps),1080P(1920x1080 8*25fps),720P(1280×720 8*25fps),

960H(960×576 8*25fps)
NTSC:8MP(3840*2160 8*8fps), 5MP(2592×1944 8*12fps), 4MP(2560×1440 8*15fps),

3MP(2048×1536 8*18fps),1080P(1920x1080 8*30fps),720P(1280×720 8*30fps),

960H(960×480 8*30fps)
Pure IP(H.265):
PAL:4k@22×25fps,5MP@32×25fps,4MP@32x25fps,3MP@32×25fps,1080P@32×25fps,

960P@32×25fps,720P@32×25fps,D1@32×25fps
NTSC: 4k@22×30fps,5MP@32×30fps,4MP@32×30fps,3MP@32×30fps,1080P@32×30fps,

 960P@32×30fps, 720P@32×30fps, D1@32×30fps

Record ModeManualimerotion Detection
Playback & Backup
Decode Capability3CH 4K@30fps
Sync Playback

Pure Analog: 8CH 8M@8fps, 8CH 5M@12fps,8CH 4M@15fps, 8CH 3M@18fps,

 8CH 1080p@30fps
Mix Mode:  4CH 1080P@30fps, 4CH 3MP@18fps, 4CH 4M@30fps, 3CH 5MP@20fps,

 2CH 4K@30fps
Pure IPC: 3CH 4K@30fps, 4CH 5M@30fps, 6CH 4M@30fps, 6CH 3M@30fps,

9CH 1080P@30fps, 9CH 960P@30fps, 9CH 720P@30fps

Remote Playback4 Channel / 1 Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen
Smart Phone Playback4 Channel
Backup ModeUSB Device(with fomat FAT 32 )/Network
Network
Interface1 RJ45 10M/100/1000M Adaptive Ethernet Interface
Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web BrowserDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
CMS SoftwareIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
Extra StreamD1/CIF(1~30fps)
Smart PhoneiPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type1 SATA Interface
Capacity1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General
Language

Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean,

Dutch, Greek

UTC ControlYES
USB Interface2 USB 2.0 Interfaces
Power consumptionDC 12V  ≤10W (Without Hard Disk)
Working Environment-10~55/10~90%
Dimension (W×D×H)260*215*43(mm)
Weight2.0kg (Without HDD)



ModelAHD-T2004U
System
Main ProcessorHI3520D
Operating SystemEmbedded LINUX
Video
InputAHD:4*1080P/720P; Analog:4*960H/D1; IPC:8*1080P/960P/720P
Output1HDMI,1 VGA, 1CVBS
Audio
Input4Channel, RCA
Two-way AudioNO
Output1 Channel, RCA
Alarm
Sensor InputNO
OutputNO
Motion Detection4 Channel
Trigger EventsRecording, PTZ, Tour, Alarm, Email, Screen tips
Email AlarmSend Pieces to The Designated E-mail
PTZ
InterfaceRS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGAResolution: 1024×768, 1280×720, 1280×1024, 1920×1080
HDMI1920x1080
Display Split9 Channel/4 Channel / 1Channel
Privacy Masking1Rectangular Zones (Each camera)
OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video CompressionH.264
Audio CompressionG711A
Resolution1080P(1920x1080),720P(1280×720), 960H(P:960×576/N:960×480)
Video Qualityworst/worse/ordinary/well/best
Record Ratehalf1080P(960x1080 100fps/120fps),720P(1280×720 100fps/120fps), 960H(P:960×576 100fps/N:960×480 120fps)
Record ModeManualimerotion Detectionlarm
Playback & Backup
Sync Playback1Channel
Remote Playback1Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Fast play, Slow play
Smart Phone Playback1 Channel
Backup ModeUSBDevice/Network
Network
Interface1RJ4510M/100MAdaptiveEthernetInterface
Network FunctionsHTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,FTP,UPNP
DDNSDyndns,changeip,no-ip,Oray,A-PRESS,MYQSEE,SKDDNS,SMART-EYES
Web BrowserIE8-11,Googel,Firefox
CMS SoftwareSupport Windows XP /Windows Vista/Windows 7/Windows 8
Extra StreamD1/CIF(1~25fps)
Smart PhoneiPhone, ipad, Android ,Android pad
Hard Disk Driver
Interface Type2SATAInterface
Capacity2.5"/3.5" SATA, Up to 8TB
General
LanguageSupport 20 languages (Chinese, English, polish, Czech, Russian, Thai, Hebrew, Arabic,
Bulgarian, Persian, Germany, France, Portugal, Turkey, Spain, Italy, Hungary, Romania, Korean,Nederland)
USB Interface2USB2.0Interfaces
Power consumptionDC12V≤6W
Working Environment-10~55/10~90%
Dimension (W×D×H)354*280*50(mm)
Weight4.5kg (Without HDD)
