  1. Úvod
  2. AHD,CVI,TVI rekordér
  3. Monitorrs Security XVR záznamové zariadenie 5Mpx 4 kanálové (6506)

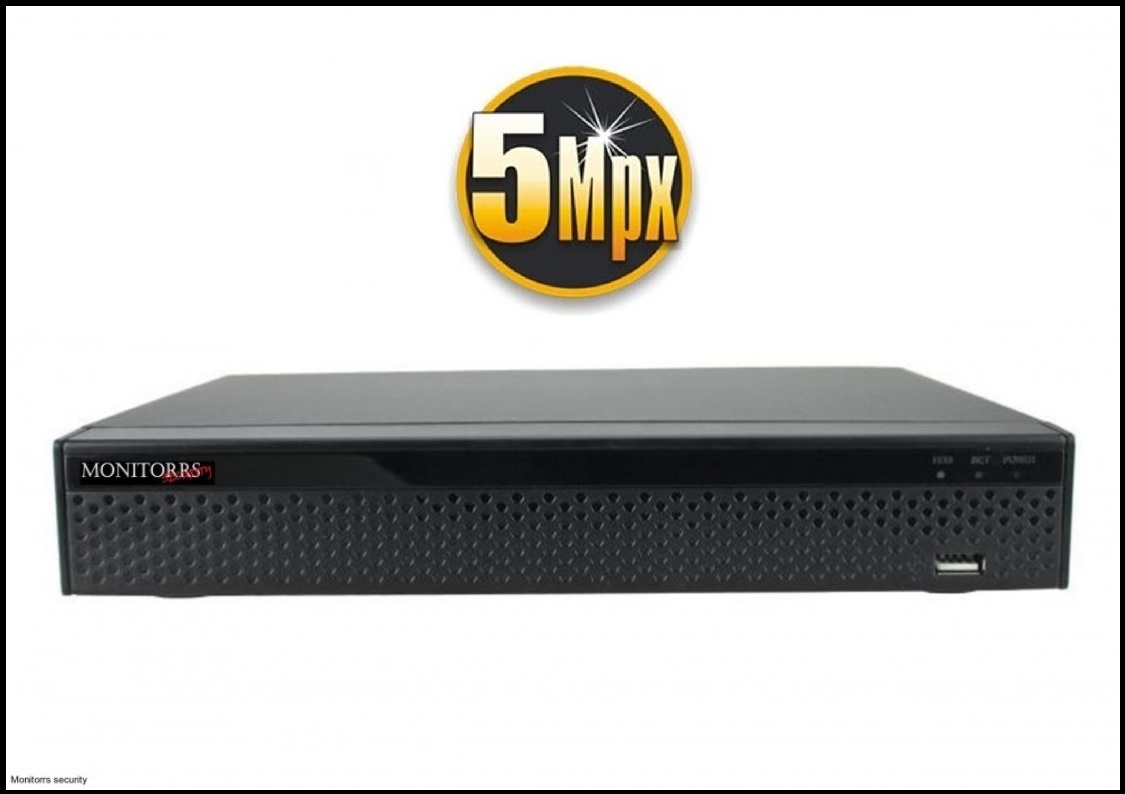

Monitorrs Security XVR záznamové zariadenie 5Mpx 4 kanálové (6506)

Monitorrs Security

4 kanálové záznamové zariadenie s možnosťou vzdialeného prístupu cez mobil alebo PC s Funkciou P2P 4CH H.265 5IN1 XVR 8MP• Podpora vstupu AHD / CVI / ... celý popis
Dostupnosť
Skladom 9 ks
99,00 €
82,50 €
bez DPH
ks
Číslo produktu:6506
Výrobca:Monitorrs Security
Kompletné špecifikácie

4 kanálové záznamové zariadenie s možnosťou vzdialeného prístupu cez mobil alebo PC s Funkciou P2P

4CH H.265 5IN1 XVR 8MP
• Podpora vstupu AHD / CVI / TVI / IP / analógovej kamery
• Nahrávanie v rozlíšení až do HD 8MP a IP 8MP
• Podpora HD výstupu, VGA a CVBS video výstupu
• Podpora Max. 4-kanálový HD alebo 16-kanálový vstup IP kamery
• Podpora 1 SATA až do kapacity 8 TB



System
Main ProcessorHI3521D
Operating SystemEmbedded LINUX
Video
Input

Default: 4*(AHD/TVI/CVI: 8MP; TVI/AHD: 5MP;  AHD/TVI/CVI: 4MP;

AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+4*network(Max 8MP)
Analog+Network:2*Analog+7*network(Max 8MP)
Network: 16*network(Max 8MP)(Total incoming bandwidth 80M)

Input4CH BNC
Signal TypeAnalog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output1 HD,1 VGA
Audio
Input4Channel, RCA
Two-way AudioNO
Output1 Channel, RCA
Alarm
Sensor InputNO
OutputNO
Motion Detection8 Channel(max 16 Channel in pure network mode)
Trigger EventsRecording,  Email, Screen tips, Buzzer, Push notifications(motion detection)
Email AlarmSend Image to The Designated E-mail
AI Function
Face Comparison2 channel video stream face Comparison(1 face databases with 10 face images)
PTZ
InterfaceRS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGA

Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz,

1280 × 720/60Hz,1024 × 768/60Hz

HD Output

Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz,

 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

Display Split16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking3 Rectangular Zones (Each camera)
OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video CompressionH.265/H.265+/H.264/H.264+
Audio CompressionG.711u/G.711a
Resolution

8MP(3840×2160), 5MP(2592×1944),4MP(2560×1440),3MP(2048×1536),

1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)

Video QualityWorst/Worse/Ordinary/Well/Best
Record Rate

Analog:  PAL:8MP(3840*2160 8*8fps), 5MP(2592×1944 4*12fps),

4MP(2560×1440 4*15fps),3MP(2048×1536 4*18fps);1080P(1920x1080 4*25fps),

720P(1280×720 4*25fps), 960H(960×576 4*25fps)
NTSC: 8MP(3840*2160 8*8fps), PAL:5MP(2592×1944 4*12fps),

4MP(2560×1440 4*15fps),3MP(2048×1536 4*18fps),1080P(1920x1080 4*30fps),

720P(1280×720 4*30fps), 960H(960×480 4*30fps)
Pure IP(H.265):
PAL :4k@8x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps,

1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps
NTSC:4k@8x30fps, 5MP@12x30fps,4MP@16x30fps, 3MP@16x30fps,

1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps

Record ModeManualimerotion Detection
Playback & Backup
Decode Capability4CH 1080P@30fps
Sync Playback

Pure Analog: 4CH 8M@8fps, 4CH 5M@12fps, 4CH 4M@15fps,

4CH 3M@18fps, 4CH 1080p@30fps, 1CH 4K@30fps
Mix Mode:  4CH 1080P@30fps, 3CH 3MP@18fps,

 2CH 5M@12fps, ,2CH 5MP@30fps, 1CH 4K@30fps
Pure IPC:  1CH 4K@30fps, 2CH 5MP@30fps, 3CH 4MP@30fps,

4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Remote Playback4 Channel / 1 Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions

Play, Pause, Stop, Fast play, Slow play,

Rewind, Single frame forward/back, Digital Zoom, Full screen

Smart Phone Playback4 Channel
Backup ModeUSB Device(with fomat FAT 32 )/Network/FTP
Network
Interface1 RJ45 10M/100 Adaptive Ethernet Interface
Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
Web BrowserIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
Extra StreamD1/CIF(1~30fps)
Smart PhoneiPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type1 SATA Interface
Capacity1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General
Language

Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German,

French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek

UTC ControlYES
USB Interface2 USB 2.0 Interfaces
Power consumptionDC 12V/2A  6W (Without Hard Disk)
Working Environment-10~55/10~90%
Dimension (W×D×H)260*215*43(mm)
Weight2.0kg (Without HDD)
  •
ModelAHD-T2004U
System
Main ProcessorHI3520D
Operating SystemEmbedded LINUX
Video
InputAHD:4*1080P/720P; Analog:4*960H/D1; IPC:8*1080P/960P/720P
Output1HDMI,1 VGA, 1CVBS
Audio
Input4Channel, RCA
Two-way AudioNO
Output1 Channel, RCA
Alarm
Sensor InputNO
OutputNO
Motion Detection4 Channel
Trigger EventsRecording, PTZ, Tour, Alarm, Email, Screen tips
Email AlarmSend Pieces to The Designated E-mail
PTZ
InterfaceRS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGAResolution: 1024×768, 1280×720, 1280×1024, 1920×1080
HDMI1920x1080
Display Split9 Channel/4 Channel / 1Channel
Privacy Masking1Rectangular Zones (Each camera)
OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video CompressionH.264
Audio CompressionG711A
Resolution1080P(1920x1080),720P(1280×720), 960H(P:960×576/N:960×480)
Video Qualityworst/worse/ordinary/well/best
Record Ratehalf1080P(960x1080 100fps/120fps),720P(1280×720 100fps/120fps), 960H(P:960×576 100fps/N:960×480 120fps)
Record ModeManualimerotion Detectionlarm
Playback & Backup
Sync Playback1Channel
Remote Playback1Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Fast play, Slow play
Smart Phone Playback1 Channel
Backup ModeUSBDevice/Network
Network
Interface1RJ4510M/100MAdaptiveEthernetInterface
Network FunctionsHTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,FTP,UPNP
DDNSDyndns,changeip,no-ip,Oray,A-PRESS,MYQSEE,SKDDNS,SMART-EYES
Web BrowserIE8-11,Googel,Firefox
CMS SoftwareSupport Windows XP /Windows Vista/Windows 7/Windows 8
Extra StreamD1/CIF(1~25fps)
Smart PhoneiPhone, ipad, Android ,Android pad
Hard Disk Driver
Interface Type2SATAInterface
Capacity2.5"/3.5" SATA, Up to 8TB
General
LanguageSupport 20 languages (Chinese, English, polish, Czech, Russian, Thai, Hebrew, Arabic,
Bulgarian, Persian, Germany, France, Portugal, Turkey, Spain, Italy, Hungary, Romania, Korean,Nederland)
USB Interface2USB2.0Interfaces
Power consumptionDC12V≤6W
Working Environment-10~55/10~90%
Dimension (W×D×H)354*280*50(mm)
Weight4.5kg (Without HDD)
